Microsoft Dynamics 365 (Action Flow)

Important

Any references to third-party products or services do not constitute Celonis Product Documentation nor do they create any contractual obligations. This material is for informational purposes only and is subject to change without notice.

Celonis does not warrant the availability, accuracy, reliability, completeness, or usefulness of any information regarding the subject of third-party services or systems.

The Microsoft Dynamics 365 modules enable you to monitor events and create, update, search, retrieve, or delete vendor invoices and vendor invoice items in your Microsoft Dynamics 365 account.

Getting Started with Microsoft Dynamics 365

Prerequisites:

Connect Microsoft Dynamics 365 to Celonis platform

To connect your Microsoft Dynamics 365 app, you must obtain the client credentials and Tenant ID from the MS Azure Portal and insert them into Create a connection dialog with your Host URL.

  1. Log in to MS Azure Portal.

  2. Navigate to the Azure Active Directory service (61f1665478fe8.png ).

  3. Copy the Tenant ID to a safe place.

  4. Name

    Enter a name for the app.

    Supported account types

    Select the account type based on your preferences. If you are selecting the multitenant option,Accounts in any organizational directory (<your service> - Single tenant) , then the user establishing the connection will have to:

    • use the Tenant ID during the connection creation

    • be in the same Tenant ID

    Redirect URI (Optional)

    Select the following options:

    • Platform: Web

  5. Note

    The Tenant ID is mandatory for single-tenant apps and optional for multi-tenant apps.

  6. lI8wTLVZYj.png
  7. MS-dynamics-365-crm-6.png
  8. Click API Permissions > Dynamics CRM , select permission, click Add Permission and click Grant Admin consent for.


    You now have all the permission to connect to the app.

  9. Log in to your Celonis platform account, add a Microsoft Dynamics 365 module Action Flow, and click the Add button next to the Connection field.

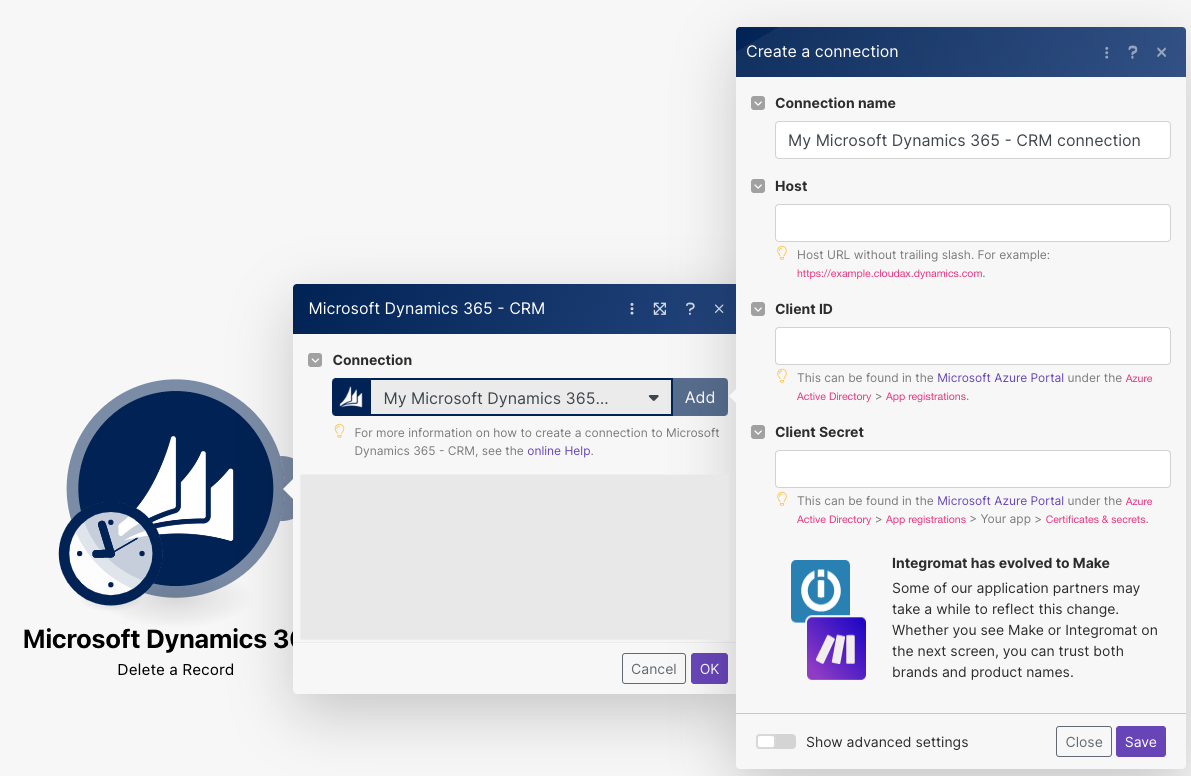

  10. Enter the following details and click Save.

    Connection name

    Optional: Enter the name of your connection.

    Host

    Enter the Host URL without trailing slash " / " and including HTTPS, https://<example>.cloudax.dynamics.com.

    Tenant ID

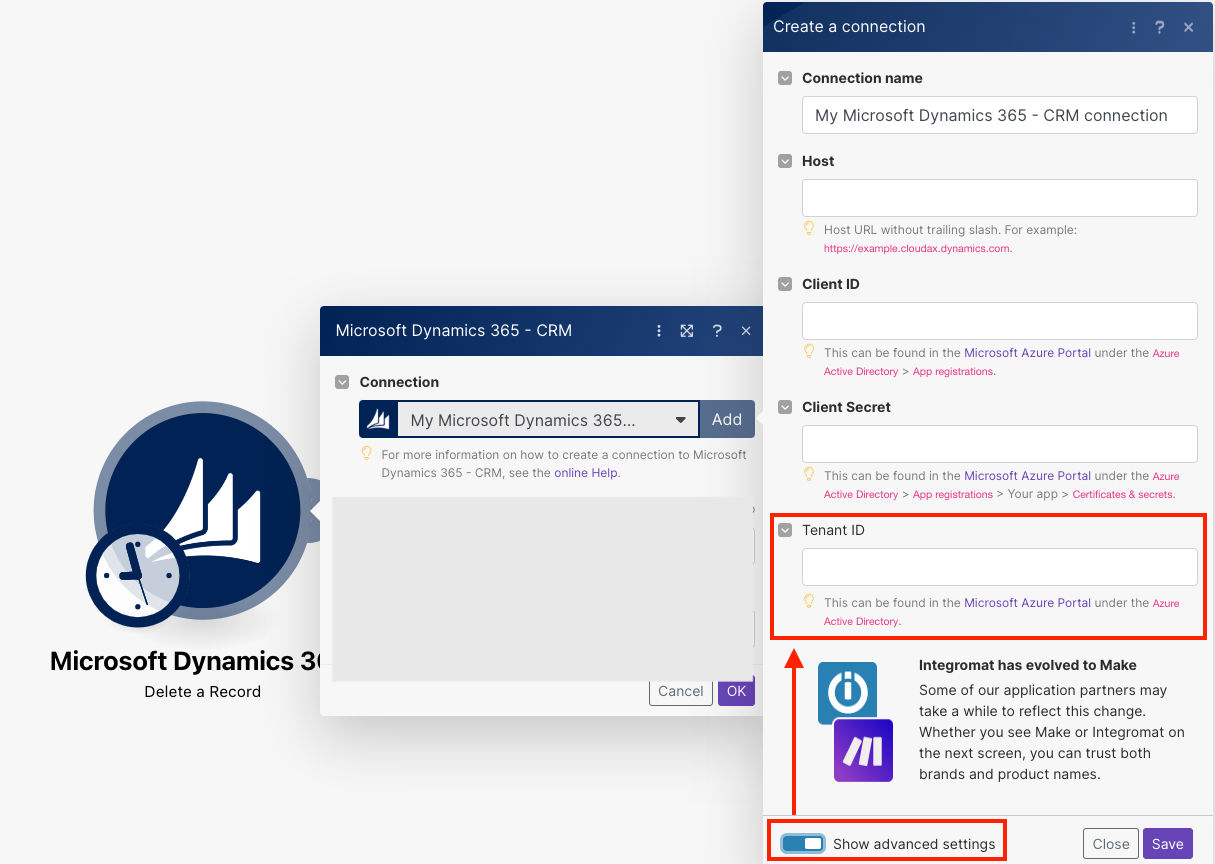

    Optional: Click Show Advanced Settings and enter the Tenant ID you have copied in step 3.

    Note

    The Tenant ID is mandatory for single-tenant and optional for multi-tenant apps.

    Enter the Client ID copied in step 5.

    Enter the secret value copied in step 7.

  11. Confirm the dialog by clicking the Accept button.

You have successfully established the connection. You can now edit Action Flow, add more Microsoft Dynamics 365 modules, and reauthorize your connection if required.

Note

If the Status Code Error: 401 error displays, the Host URL could be inserted with the trailing slash (remove the slash at the end of the URL), or there can be another mistake in the Create a connection dialog field.

Vendor Invoices

Using the following modules, you can search, create, update, list, retrieve, and delete vendor invoices and invoice items.

Retrieves vendor invoices by filter settings.

Connection

Establish a connection to your Microsoft Dynamics 365 account.

Type of Filter

Select whether to use an in-built simple filter or a custom filter based on the Open Data query.

Simple Filter

Select the name of the field (property) and the value you want to filter returned results by. You can build the filter query using the AND/OR operators.

Custom Filter

Enter the OData query. For more details, please see the OData documentation.

Order By

Set the sort order of the result by selecting the property and direction you want to sort the results by.

Limit

Set the maximum number of vendor invoices Celonis platform will return during one execution cycle.

Keyword Query Language

Use Keyword Query Language (KQL) search syntax to build your search queries in Microsoft modules. For more information, see Microsoft Graph help.

Creates a new vendor invoice.

It is necessary to create a vendor invoice in order to create a vendor invoice item.

Required fields:

Connection

Establish a connection to your Microsoft Dynamics 365 account.

Data Area ID

Select the company or enter the ID of the company that created the invoice.

Currency

Enter the currency code. Use the Search button to determine the exact currency code.

Invoice Account

Select the invoice account that is associated with the vendor for the purchase order, if the invoice is associated with a purchase order. If the invoice is not associated with a purchase order, enter the vendor account for the invoice.

Invoice Number

Enter the desired invoice number.

Retrieves post details.

Connection

Establish a connection to your Microsoft Dynamics 365 account.

Data Area ID

Enter (map) the ID of the company that created the invoice you want to retrieve details for.

Invoice Header Reference

Enter the header reference of the invoice you want to retrieve details for.

Updates an existing vendor invoice.

Connection

Establish a connection to your Microsoft Dynamics 365 account.

Data Area ID

Enter (map) the ID of the company that created the invoice you want to update.

Invoice Header Reference

Enter the header reference of the invoice you want to update.

Please find the descriptions of the fields in the Create a vendor invoice module description.

Deletes an existing vendor invoice.

Connection

Establish a connection to your Microsoft Dynamics 365 account.

Data Area ID

Enter (map) the ID of the company that created the invoice you want to delete.

Invoice Header Reference

Enter the header reference of the invoice you want to delete.

Retrieves items for a specified vendor invoice.

Connection

Establish a connection to your Microsoft Dynamics 365 account.

Invoice Header Reference

Enter the header reference of the invoice you want to list items for.

Limit

Set the maximum limit of vendor invoice items Celonis platform will return during one execution cycle.

Creates a vendor invoice item and attaches it to the specified vendor invoice.

Connection

Establish a connection to your Microsoft Dynamics 365 account.

Invoice Header Reference

Enter the header reference of the vendor invoice that you want to attach the vendor invoice item to.

Item Number

Enter the item number. Ideally, the item number should be identical to the product number.

Procurement Category

Enter the name of the procurement category.

Updates a vendor invoice item.

Connection

Establish a connection to your Microsoft Dynamics 365 account.

Data Area ID

Enter (map) the ID of the company that created the invoice you want to update.

Invoice Header Reference

Enter the header reference of the vendor invoice that contains the vendor invoice item you want to update.

Invoice Item Line Number

Enter (map) the number of the invoice item line which you want to update.

Deletes a vendor invoice item.

Connection

Establish a connection to your Microsoft Dynamics 365 account.

Data Area ID

Enter (map) the ID of the company that created the invoice containing the item you want to delete.

Invoice Header Reference

Enter the header reference of the invoice item you want to delete.

Invoice Item Line Number

Enter (map) the number of the invoice item line which you want to delete.

Generic Modules
Watch Events

Triggers when a predefined business event occurs.

The webhook URL needs to be generated in Celonis platform and then added to MS D365's integration settings. To set up receiving webhook from MS Dynamics 365, you need to follow these five main steps:

Generating a Webhook URL

1. Add the Watch Events module to your Celonis platform scenario.

2. Generate and copy the webhook URL.

Creating a Key Vault

1. Log in to MS Azure Portal.

2. Navigate to Key vaults and click the Create key vault button.


3. On the Basics tab, select the BusinessEvents in the Resource group field, fill all required fields and click the Next: Access policy button (61f1666069163.png).


On the Access policy tab click the +Add Access Policy link.


In the Add access policy dialog, set the access policy as follows and the configuration by clicking Add button:

Configure from the template (optional)

Select the Key, Secret & Certificate Management option.

Key permissions

Select all permissions and uncheck the Decrypt option.

Secret permissions

Select all permissions.

Certificate permissions

Select all permissions.

Select principal

Select the application you have created before.

  • Proceed to the Review + create tab and click Create.

Generating Secret and Inserting the Webhook URL

1. Once the Key Vault is created, navigate to Key Vault resource > Secrets, click +Generate/Import.


2. Fill the following fields:

Upload option

Manual.

Name

Enter the desired name for the webhook.

Value

Enter the webhook URL you have generated in the Generating a Webhook URL section.

Creating an HTTPS Endpoint

1. Log in to your Dynamics 365 Finance and Operation environment.

2. Navigate to System administration > Business events > Business events catalog.


3. Open the Endpoints tab and click +New.


Select the HTTPS endpoint type and click Next.

Configure the new endpoint as follows:

Endpoint name

Enter the name of the endpoint.

Endpoint type

HTTPS

Azure Active Directory application ID

Enter the application ID that is created in the Azure Active Directory in the Azure portal.


Azure application secret

Enter the secret value for the application. Create a new client secret under Certificates & secrets.


Key vault DNS name

Enter the name from your Key Vault setup. You can find it in the Overview of the Key Vault you have created under the Vault URI field.


Key vault secret name

Enter the secret name for the endpoint resource you have created in Key Vault.

Activating Business Events

Business events in the business event catalog are not active by default. From the catalog, you can activate any business event that you want to trigger your Celonis platform Watch Events module.

1. Select the business event on the Business event catalog tab.

2. Click +Activate.

3. In the Configure new business event dialog, select the legal entity and the endpoint you have created and click OK to save the configuration.


4. Make sure that you see the event on the Active events tab.


Now, every time the vendor invoice is posted, the Watch Events module in your Celonis platform scenario is triggered.

Make an API Call

Allows you to perform a custom API call.

Connection

Establish a connection to your Discourse account.

URL

Enter a path relative to your host URL.

For example: /data/Customers .

For the list of available endpoints, refer to the list of entities at https://<<My Instance URL>>/Metadata/DataEntities .

Method

Select the HTTP method you want to use:

GET

to retrieve information for an entry.

POST

to create a new entry.

PUT

to update/replace an existing entry.

PATCH

to make a partial entry update.

DELETE

to delete an entry.

Headers

Enter the desired request headers. You don't have to add authorization headers; we added those for you.

Query String

Enter the request query string.

Body

Enter the body content for your API call.

Example of Use - List Customers

The following API call returns all customers in your MS Dynamics 365 account:

URL :

/data/Customers

Method:

GET


The result can be found in the module's Output under Bundle > Body > value.

In our example, 9 customers were returned:
