Setting up JDBC extractor on Kubernetes

This guide is for deploying the containerized JDBC extractor to Kubernetes using kubectl. The provided manifests can also be used with GitOps (i.e. ArgoCD) for better management of your extractor deployment.

Prerequisites

To set up the JDBC extractor on Kubernetes, you need the following:

A provisioned Kubernetes cluster
Appropriate RBAC setup
kubectl installed locally with the right kubeconfig context set
Docker, Podman, or another tool for interacting with OCI container images installed locally. This guide will assume you are using Docker but you can run the same commands with Podman or another suitable tool.
Access to a container registry and that you have logged in to the registry using docker login.
Celonis currently does not provide our image via a public registry, a ZIP export of the built container image is provided on our Download Portal and can be uploaded to a customer-maintained image registry.

Loading the image from Celonis and pushing to a container registry

To do this, follow these steps:

In your dev environment, verify docker is installed and configured for your user:
```
$ docker run hello-world
```
You should get a message back that indicates a successful image pull and container run.

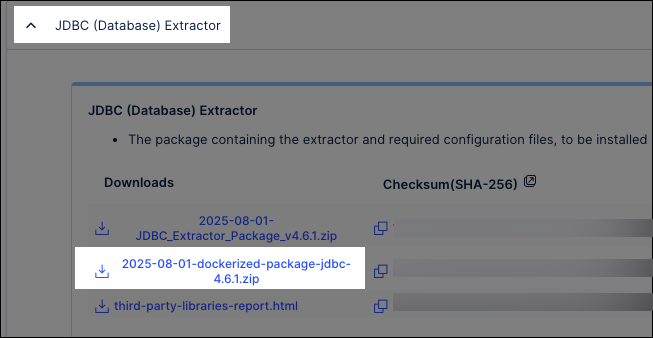

In the Celonis Platform, click Admin & Settings - Download Portal and download the latest JDBC (Database) Extractor zip file:
Unzip the file and change into the created directory:
```
$ unzip <YYYY-MM-DD>-dockerized-package-jdbc-<VERSION>.zip$ cd <YYYY-MM-DD>-dockerized-package-jdbc-<VERSION>
```
You may need to install unzip from your systems package manager if it is not already present.

Load the extractor image into Docker:

$ docker load --input <connector_package_name>.tar

You can now use the docker images command to verify that the container image is present on the system:

$ docker images

This should return results including:

REPOSITORY               TAG       IMAGE ID       CREATED        SIZE
connector-jdbc-on-prem   <VERSION>     a28b0627b300   2 weeks ago    877MB

Re-tag the image for the remote registry:

$ docker tag connector-jdbc-on-prem:<VERSION>
<REGISTRY_AND_NAMESPACE>/<NEW_IMAGE_NAME>:<VERSION>

For example, if you want to keep the image name as connector-jdbc-on-prem, the version is 3.7.4, and your registry/namespace is docker.io/acme_inc, you would run the following command:

$ docker tag connector-jdbc-on-prem:3.7.4
docker.io/acme_inc/connector_jdbc_on_prem:3.7.4

You can verify this was successful with the docker images command. Both images should appear seperately but with the same IMAGE ID.

REPOSITORY                                                    TAG                   IMAGE ID       CREATED        SIZE
connector-jdbc-on-prem                                        3.7.4                 1ee472ded783   3 months ago   502MB
docker.io/acme_inc/connector_jdbc_on_prem                     3.7.4                 1ee472ded783   3 months ago   502MB

Push the image to the remote registry:

$ docker push <REGISTRY_AND_NAMESPACE>/<NEW_IMAGE_NAME>:<VERSION>

So following our example above, the command would look like this:

$ docker push docker.io/acme_inc/connector_jdbc_on_prem:3.7.4

Deploying to Kubernetes

You can now deploy to Kubernetes by following these steps:

Create a kubernetes-manifest.yaml file using the following information:

# This is a comprehensive Kubernetes manifest to deploy the JDBC Extractor.
# It includes a Secret, ServiceAccount, Deployment, and NetworkPolicy.
#
# How to use:
# 1. Edit this file and replace all placeholder values (e.g., <YOUR_CONTAINER_REPO>, <CELONIS_CLIENT_ID_BASE64>).
# 2. Make sure to update the resources section under the Deployment to match your specific sizing requirements.
# 3. Make sure if you are using a private container registry, you have created the necessary image pull secret and uncomment the `imagePullSecrets` section.
# 4. Take special care to ensure that the labels app.kubernetes.io/name, app.kubernetes.io/instance, and app.kubernetes.io/version are set correctly.
# 5. Save the file as 'kubernetes-manifest.yaml'.
# 6. Apply it to your cluster with: kubectl apply -f kubernetes-manifest.yaml -n <your-namespace>

---
# 1. Secret: Stores all sensitive information.
# IMPORTANT: The values here are base64 encoded. You must encode your actual secrets.
# Example: echo -n 'your-real-secret' | base64
apiVersion: v1
kind: Secret
metadata:
  name: jdbc-extractor-secret
type: Opaque
data:
  # Replace with your base64 encoded Celonis Client ID
  uplink-client-id: <CELONIS_CLIENT_ID_BASE64>
  # Replace with your base64 encoded Celonis Client Secret
  uplink-client-secret: <CELONIS_CLIENT_SECRET_BASE64>
  # --- Optional Proxy Credentials ---
  # If using a proxy, uncomment and replace with your base64 encoded credentials.
  # proxy-username: <YOUR_PROXY_USERNAME_BASE64>
  # proxy-password: <YOUR_PROXY_PASSWORD_BASE64>

---
# 2. ServiceAccount: Provides a dedicated identity for the application pod.
apiVersion: v1
kind: ServiceAccount
metadata:
  name: jdbc-extractor-sa

---
# 3. Deployment: Defines how to run the application container.
apiVersion: apps/v1
kind: Deployment
metadata:
  name: jdbc-extractor-deployment
  labels:
    app.kubernetes.io/name: celonis-jdbc-extractor
    app.kubernetes.io/instance: prod-extractor
    app.kubernetes.io/version: "3.7.4"
    app.kubernetes.io/managed-by: kubectl
spec:
  replicas: 2
  selector:
    matchLabels:
      app.kubernetes.io/name: celonis-jdbc-extractor
      app.kubernetes.io/instance: prod-extractor
  template:
    metadata:
      labels:
        app.kubernetes.io/name: celonis-jdbc-extractor
        app.kubernetes.io/instance: prod-extractor
    spec:
      serviceAccountName: jdbc-extractor-sa
      # --- Optional Image Pull Secret ---
      # If your container image is in a private registry, uncomment the following
      # lines and replace 'my-registry-secret' with the name of your secret.
      # imagePullSecrets:
      #   - name: my-registry-secret
      containers:
        - name: jdbc-extractor
          # IMPORTANT: Replace with the path to your image in ECR.
          image: <YOUR_CONTAINER_REPO>/<IMAGE_NAME>:<VERSION>
          imagePullPolicy: IfNotPresent
          env:
            - name: MANAGEMENT_ENDPOINT_HEALTH_PROBES_ENABLED
              value: "true"
            - name: UPLINK_ENABLED
              value: "true"
            - name: UPLINK_URL
              # IMPORTANT: Replace with your Celonis team URL.
              value: "https://<your-team>.<your-realm>.celonis.cloud/uplink/api/public/uplink"
            - name: UPLINK_CLIENTID
              valueFrom:
                secretKeyRef:
                  name: jdbc-extractor-secret
                  key: uplink-client-id
            - name: UPLINK_CLIENTSECRET
              valueFrom:
                secretKeyRef:
                  name: jdbc-extractor-secret
                  key: uplink-client-secret
            # --- Optional Proxy Configuration ---
            # To enable, uncomment this section and provide your proxy details.
            # - name: PROXY_ENABLED
            #   value: "true"
            # - name: PROXY_HOST
            #   value: "<your-proxy-host>"
            # - name: PROXY_PORT
            #   value: "<your-proxy-port>"
            # - name: PROXY_USERNAME
            #   valueFrom:
            #     secretKeyRef:
            #       name: jdbc-extractor-secret
            #       key: proxy-username
            # - name: PROXY_PASSWORD
            #   valueFrom:
            #     secretKeyRef:
            #       name: jdbc-extractor-secret
            #       key: proxy-password
          ports:
            - name: http
              containerPort: 8080
            - name: debug
              containerPort: 5005
          readinessProbe:
            httpGet:
              path: /actuator/health/readiness
              port: app
            initialDelaySeconds: 10
            periodSeconds: 5
            failureThreshold: 3
            timeoutSeconds: 30
          livenessProbe:
            httpGet:
              path: /actuator/health/liveness
              port: app
            initialDelaySeconds: 15
            periodSeconds: 10
            successThreshold: 1
            failureThreshold: 2
            timeoutSeconds: 5
          resources:
            requests:
              memory: "4Gi"
              cpu: "1000m"
            limits:
              memory: "16Gi"
              cpu: "8000m"
          # --- Optional Volume for Custom JDBC Drivers ---
          # To enable, uncomment this section.
          # volumeMounts:
          #   - name: custom-driver-volume
          #     mountPath: /app/drivers/oracle-driver.jar # The full path where the driver will be available inside the container
          #     subPath: my-drivers/oracle-driver.jar # The path to the file *inside the PVC*
          # volumes:
          #   - name: custom-driver-volume
          #     persistentVolumeClaim:
          #       claimName: <YOUR_PVC_NAME> # The name of your PersistentVolumeClaim

---
# 4. NetworkPolicy: Allows necessary outbound traffic from the pod.
apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: jdbc-extractor-allow-egress
spec:
  podSelector:
    matchLabels:
      app.kubernetes.io/name: celonis-jdbc-extractor
      app.kubernetes.io/instance: prod-extractor
  policyTypes:
    - Egress
  egress:
    # Rule 1: Allow DNS lookups (crucial for resolving the uplink URL).
    - to:
      - namespaceSelector:
          matchLabels:
            kubernetes.io/metadata.name: kube-system
        podSelector:
          matchExpressions:
          - key: k8s-app
            operator: In
            values:
            - kube-dns
            - coredns
      - namespaceSelector:
          matchLabels:
            network.openshift.io/policy-group: dns
        podSelector:
          matchExpressions:
          - key: dns.operator.openshift.io/daemonset-dns
            operator: In
            values:
            - default
      ports:
        - protocol: UDP
          port: 53
        - protocol: TCP
          port: 53
    # Rule 2: Allow outbound HTTPS traffic (consider a more specific policy to whitelist Celonis IPs if no cluster-wide policy is managing this).
    - to:
      - ipBlock:
          cidr: 0.0.0.0/0
          except:
            - 10.0.0.0/8      # Private networks
            - 172.16.0.0/12   # Private networks
            - 192.168.0.0/16  # Private networks
            - 127.0.0.0/8     # Loopback
            - 169.254.0.0/16  # Link-local
            - 224.0.0.0/4     # Multicast
      ports:
        - protocol: TCP
          port: 443  # HTTPS only
    # Rule 3: Allow traffic to internal database servers (if needed)
    # Uncomment and customize this rule if you need to connect to internal databases and repeat if needed
    # - to:
    #   - ipBlock:
    #       cidr: 10.0.0.0/8    # Adjust to your internal database IP or range of IPs
    #     # Uncomment the following lines to allow specific database ports
    #   ports:
    #     - protocol: TCP
    #       port: 1433  # SQL Server
    #     - protocol: TCP
    #       port: 1521  # Oracle
    #     - protocol: TCP
    #       port: 5432  # PostgreSQL
    #     - protocol: TCP
    #       port: 3306  # MySQL

Edit the craeted kubernetes-manifest.yaml file, which contains the following resource manifests to deploy the on-premise extractor:
- Secret: Stores sensitive credentials (Celonis client ID/secret, proxy credentials).
- ServiceAccount: Provides dedicated identity for the application pod.
- Deployment: Defines the application container with proper resource limits.
- NetworkPolicy: Restricts network access following security best practices.
You may wish to modify some or all of these manifests according to your company practices for managing Kubernetes. For example, if you have a cluster or namespace NetworkPolicy you may wish to omit the NetworkPolicy section.
Create a kubernetes namespace to deploy extractor to, if it doesn't already exist:
```
$ kubectl create namespace <your-namespace>
```
If running multiple extractors, one design pattern is to create a seperate namespace for each extractor. Another design pattern is to have a shared namespace for all extractors. If this pattern is followed, make sure you update app.kubernetes.io/instance and the name of each resource (Deployment, Secret, ServiceAccount, and NetworkPolicy) throughout the file to avoid conflicts.

Create the image pull secret.

If you used a username and password to authenticate with your registry, you can run the following command:

$ kubectl create secret docker-registry my-registry-secret \
    --docker-server=<your-registry-server> \
    --docker-username=<your-username> \
    --docker-password=<your-password> \
    --namespace=<your-namespace>

Otherwise, see the Kubernetes docs for more information.

Prepare your secrets: First, encode your secrets in base64:

# Encode Celonis credentials
$ echo -n 'your-celonis-client-id' | base64
$ echo -n 'your-celonis-client-secret' | base64

# If using proxy, encode proxy credentials
$ echo -n 'your-proxy-username' | base64
$ echo -n 'your-proxy-password' | base64

Replace placeholder values: If using the provided manifests "as is", the following values need to be replaced:
Required replacements:
- <YOUR_CONTAINER_REPO>: Your container registry URL
- <IMAGE_NAME>: Your JDBC extractor image name.
- <VERSION>: Your image version/tag.
- <CELONIS_CLIENT_ID_BASE64>: Base64 encoded Celonis client ID.
- <CELONIS_CLIENT_SECRET_BASE64>: Base64 encoded Celonis client secret.
- <your-team>: Your Celonis Platform team name.
- <your-realm>: Your Celonis Platform realm (e.g., us-1, eu-1).
Optional rReplacements (if using proxy):
- <YOUR_PROXY_USERNAME_BASE64>: Base64 encoded proxy username.
- <YOUR_PROXY_PASSWORD_BASE64>: Base64 encoded proxy password.
- <your-proxy-host>: Your proxy server hostname.
- <your-proxy-port>: Your proxy server port.
Uncomment and populate sections for image pull secret, proxy configuration, volume for custom drivers, and network rules for internal database connections (see optional configurations for more details).
Apply the manifest to create resources on cluster:
```
$ kubectl apply -f kubernetes-manifest.yaml -n <your-namespace>
```
Using kubectl apply will create resources that don't exist and update any existing resources if needed.
The sample deployment is configured with two replicas. Given the same client ID and secret, replicas will load balance by default in an active-active configuration. To update anything about your kubernetes deployment, just change the relevant information in the YAML manifest (i.e. image version) and re-run kubectl apply.

Optional configurations

Custom JDBC drivers

To use custom JDBC drivers:

Create a PersistentVolumeClaim with your driver files.
Uncomment the volumeMounts and volumes sections in the manifest.
Update <YOUR_PVC_NAME> with your PVC name.
Adjust the mount paths as needed.

Proxy configuration

If your environment requires proxy access:

Uncomment the proxy-related sections in both the Secret and Deployment.
Provide your proxy credentials and configuration.
Set PROXY_ENABLED to "true".

Internal database access

If you need to connect to internal databases, modify the NetworkPolicy:

Uncomment "Rule 3" in the NetworkPolicy.
Update the CIDR ranges to match your internal networks. Or duplicate the rule per database if you prefer to whitelist specific IP(s) instead of a CIDR range.
Add specific database ports as needed.

Monitoring and troubleshooting

Check deployment status

# View pod status
$ kubectl get pods -n <your-namespace> -l app.kubernetes.io/name=celonis-jdbc-extractor

# Check pod logs
$ kubectl logs -n <your-namespace> deployment/jdbc-extractor-deployment

# Describe pod for detailed information
$ kubectl describe pod -n <your-namespace> -l app.kubernetes.io/name=celonis-jdbc-extractor

Network troubleshooting

# Test network connectivity from pod
$ kubectl exec -it -n <your-namespace> deployment/jdbc-extractor-deployment -- getent hosts <your-team>.<your-realm>.celonis.cloud

# Check NetworkPolicy
$ kubectl describe networkpolicy -n <your-namespace> jdbc-extractor-allow-egress

Resource monitoring

# Check resource usage
$ kubectl top pods -n <your-namespace>

# View resource limits
$ kubectl describe deployment -n <your-namespace> jdbc-extractor-deployment

Configuration details

Resource allocation

The deployment is configured with production-ready resource limits. Adjust accordingly per your sizing requirements:

Requests: 4Gi RAM, 1 CPU core (guaranteed resources).
Limits: 16Gi RAM, 8 CPU cores (maximum allowed resources).

These limits support large-scale data extraction operations while preventing resource exhaustion.

Network security

The NetworkPolicy implements a restrictive security model:

Allowed Outbound Traffic:
- DNS lookups (UDP/TCP port 53).
- HTTPS traffic to external endpoints (TCP port 443).
- Internal databases as specifically whitelisted.
- Blocks access to private networks.
Blocked Traffic:
- All internal network ranges (10.0.0.0/8, 172.16.0.0/12, 192.168.0.0/16).
- Loopback addresses (127.0.0.0/8).
- Link-local addresses (169.254.0.0/16).
- Multicast addresses (224.0.0.0/4).

Environmental variables

Variable	Description	Required
MANAGEMENT_ENDPOINT_HEALTH_PROBES_ENABLED	Enables healthcheck endpoints.	Yes (keep value as true)
UPLINK_ENABLED	Enables Celonis uplink connection.	Yes
UPLINK_URL	Celonis uplink API endpoint.	Yes
UPLINK_CLIENTID	Celonis client ID (from secret).	Yes
UPLINK_CLIENTSECRET	Celonis client secret (from secret).	Yes
PROXY_ENABLED	Enables proxy connection.	No
PROXY_HOST	Proxy server hostname.	No
PROXY_PORT	Proxy server port.	No
PROXY_USERNAME	Proxy username (from secret).	No
PROXY_PASSWORD	Proxy password (from secret).	No
