Adding cloud functions to Process Orchestration steps

Cloud functions enable you to define and execute authenticated API calls to any external web services directly from Process Orchestrationsteps. This allows you to collect relevant data from external services and inject it back into your orchestration.

Before you begin

  • To use cloud functions in Process Orchestration, you will have to establish a connection between your Process Orchestration step and a dedicated cloud server. Make sure you have your connection details handy, or check with your system admin for them. For the list of required settings, see the detailed steps below.

  • Create a Process Orchestration step. See Editing process steps.

Adding cloud functions to process steps

  1. In the process step editor, select the Cloud function tab.

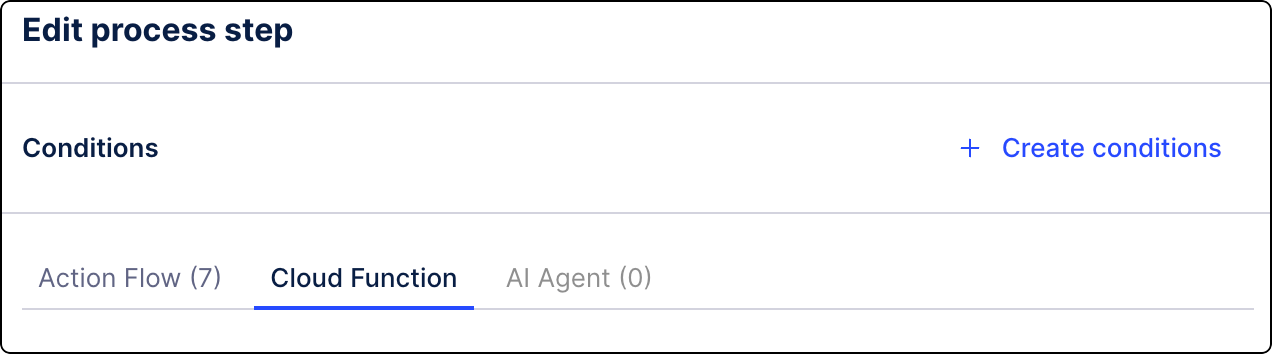

    Process Orchestration step editor with the Cloud function step selected.

  2. Click Configure cloud function.

  3. Give the cloud function a name.

  4. To provide the connection details, from the dropdown menu, select the cloud provider. Select from the following connection types:

    • Amazon Connect - this is a preconfigured integration for which you only need to provide your connection information. You should be able to find the following information in your AWS Management Console:

      Setting

      Description

      Example

      Connection name

      Label for the connection.

      Amazon CNT

      Default region

      Geographic area AWS tools and services will use by default when you don't explicitly specify one.

      eu-central-1

      Access key ID

      System user's ID in AWS.

      AKIAIOSFODNN7EXAMPLE

      Secret access key

      Password associated with the Access Key ID.

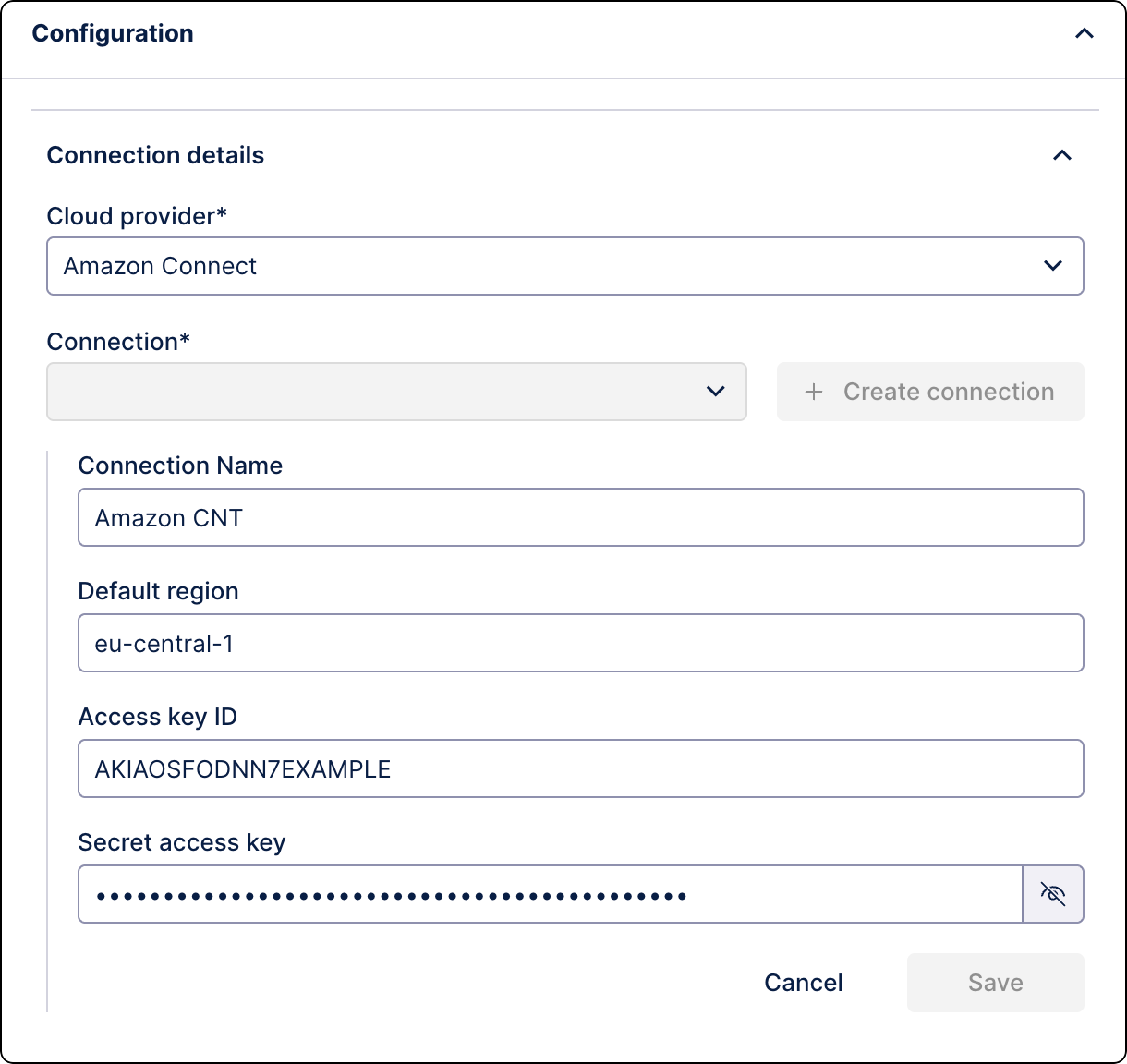

      Cloud function tab settings in the Process Orchestration tab. Amazon Connect is selected as the cloud provider and there are several connection setting entered.

    • Custom - connect to a cloud provider of your choice. Provide the following information:

      Setting

      Descritpion

      Example

      Connection name

      Label for the connection.

      My custom connection

      Base URL

      Address of the cloud server you want to reach.

      Required format: https://<your-domain>

      https://api.example.com

      Authentication type

      API key

      Location - location where to attach the API key in the outgoing request. Possible values: Header, Query.

      Header

      Name - label that your cloud server will be looking for.

      x-api-key

      Value - unique password or token.

      79402633-8f0a-4c8d-b3e1-72f88b532f1b

      OAuth 2.0

      Client ID - unique public identifier for your client.

      f9b8c2d-1a2b-4c3d-9e8f-7g6h5i4j3k2l

      Client secret - authorization password or token.

      Scopes - specific permissions you want your application to have when connecting to the cloud server. Check your server provider’s documentation for the exact list of scopes and their format.

      • If you use OAuth Client created in Celonis Platforms, go to Admin & Settings and check the scopes set for the OAuth Client you want to use. Copy these scopes here using their names as listed in OAuth scopes.

      • If you use OAuth Clients created outside Celonis Platform, check your server provider’s documentation for the exact list of scopes and their format.

      intelligence.conversations:write

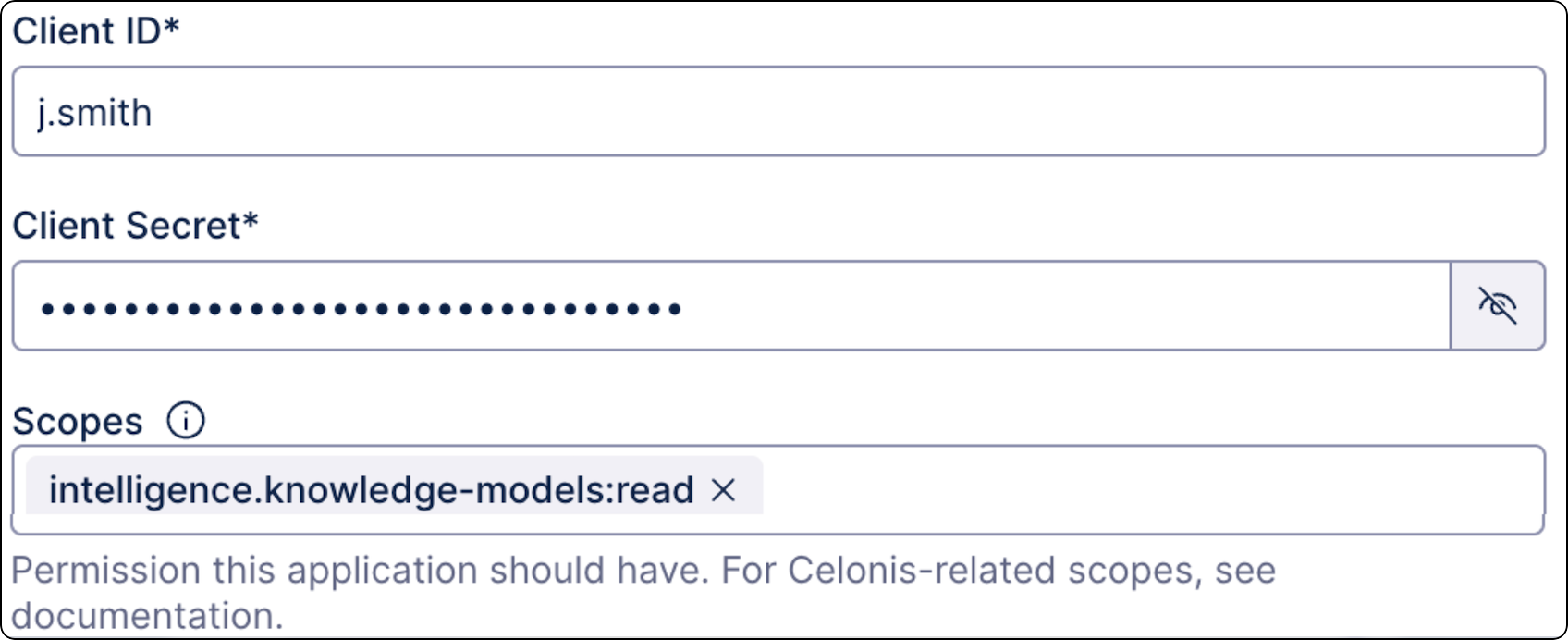

      Orchestration Engine Cloud functions configuration screen with Client ID, Client Secret, and Scopes settings visible.

      Token URL - web address of the Authorization Server where your application sends the Client ID and Secret to exchange them for an Access Token.

      https://team-name.celonis.cloud/api/external/oauth2/token

      Refresh URL  - web address of the Authorization Server where your application sends requests for a new Access Token without needing to re-authenticate with the Client Secret.

      https://team-name.celonis.cloud/api/external/oauth2/refresh

  5. Define Execution settings using the HTTPS request builder. Enter the following values:

    Setting

    Description

    Example

    Method

    Action to perform on a specific resource identified by a URL. The most commonly used HTTP request methods are: GET, POST, PUT, DELETE,

    POST

    URI

    Path of the API endpoint you’re calling. URI is relative to the base URL defined earlier.

    This field only accepts CEL expressions. Required format: "/your-endpoint"

    You use context variables from other steps in this field. To see values available for mapping, you must run the Process Orchestration test first.

    "/v1/charges"

    Query parameters

    Key-value pairs that allow you to filter or sort data.

    This field only accepts CEL expressions. Required format is: "key" "value"

    You use context variables from other steps in this field. To see values available for mapping, you must run the Process Orchestration test first.

    Key: "environment"

    Value: "production"

    Body

    Data payload sent with the request in JSON format.

    {
  "customer_name": "John Doe",
  "priority": "High",
  "is_active": true
}

    Headers

    Metadata sent along with the request.

    This field only accepts CEL expressions. Required format is: "key" "value"

    You use context variables from other steps in this field. To see values available for mapping, you must run the Process Orchestration test first.

    Key: "Content-Type"

    Value: "application/json"

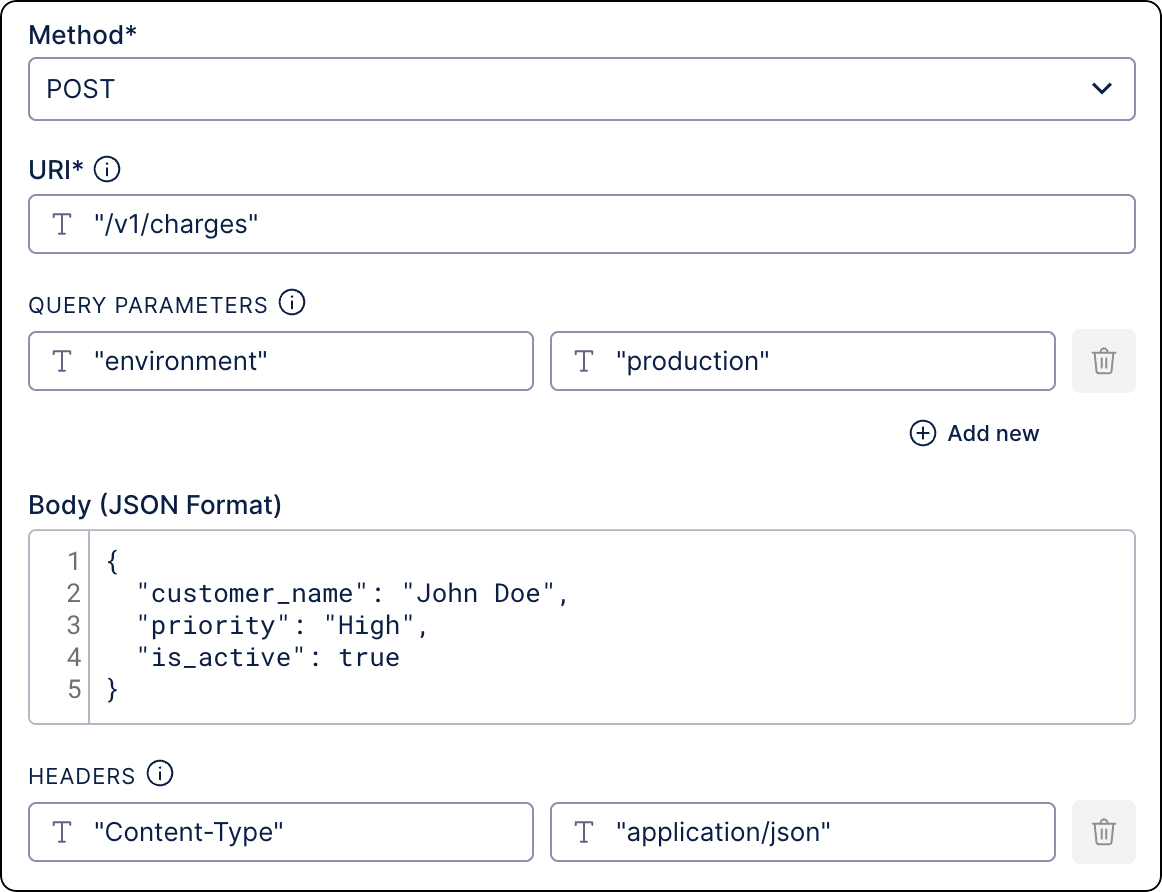

    Execution setting for Orchestration Engine cloud functions. The settings provided use example from the table in this page.

  6. Select a completion event. Select an existing event or create a new one.

    Completion events log details about the current step to provide content to the next steps in orchestration. Subsequent steps use this data to determine when the previous step has completed so they can begin execution.

Your step is created. Continue building your process. We advise testing it before deployment. See Testing Process Orchestration.
